INOVATIV’s most heavy duty design, the Apollo uses our 10In. removable EVO Wheel System and incorporates a top and bottom shelf that easily assembles without the use of tools. The Apollo is not height adjustable, but has a standard height of 40.5In. providing you a work surface at a comfortable standing height. The shelf’s are “hemmed” and compared to our traditional sheet metal shelves, the Apollo’s shelf’s have been increased in thickness by 56% to support heavier loads. Additionally, the Apollo’s bottom shelf includes our first ever internal Main-Frame System, greatly increasing the carts stability and overall payload capacity.

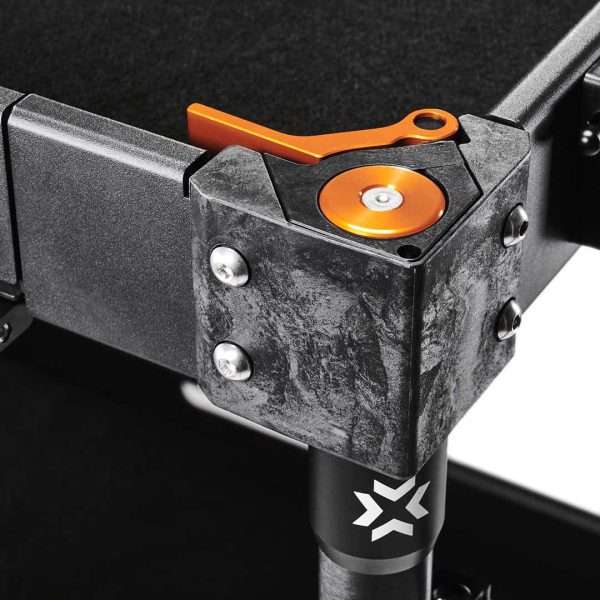

The upright tubes are secured using our Corner Mold Lock-System that doubles as a location to mount Apollo specific accessories directly into the carts upright posts, from the top deck. These four vertical posts are 14% thicker than our standard workstation posts and have been positioned at the corners of the cart. Because of these design changes, the Apollo is the most stable and durable cart INOVATIV has produced to date.

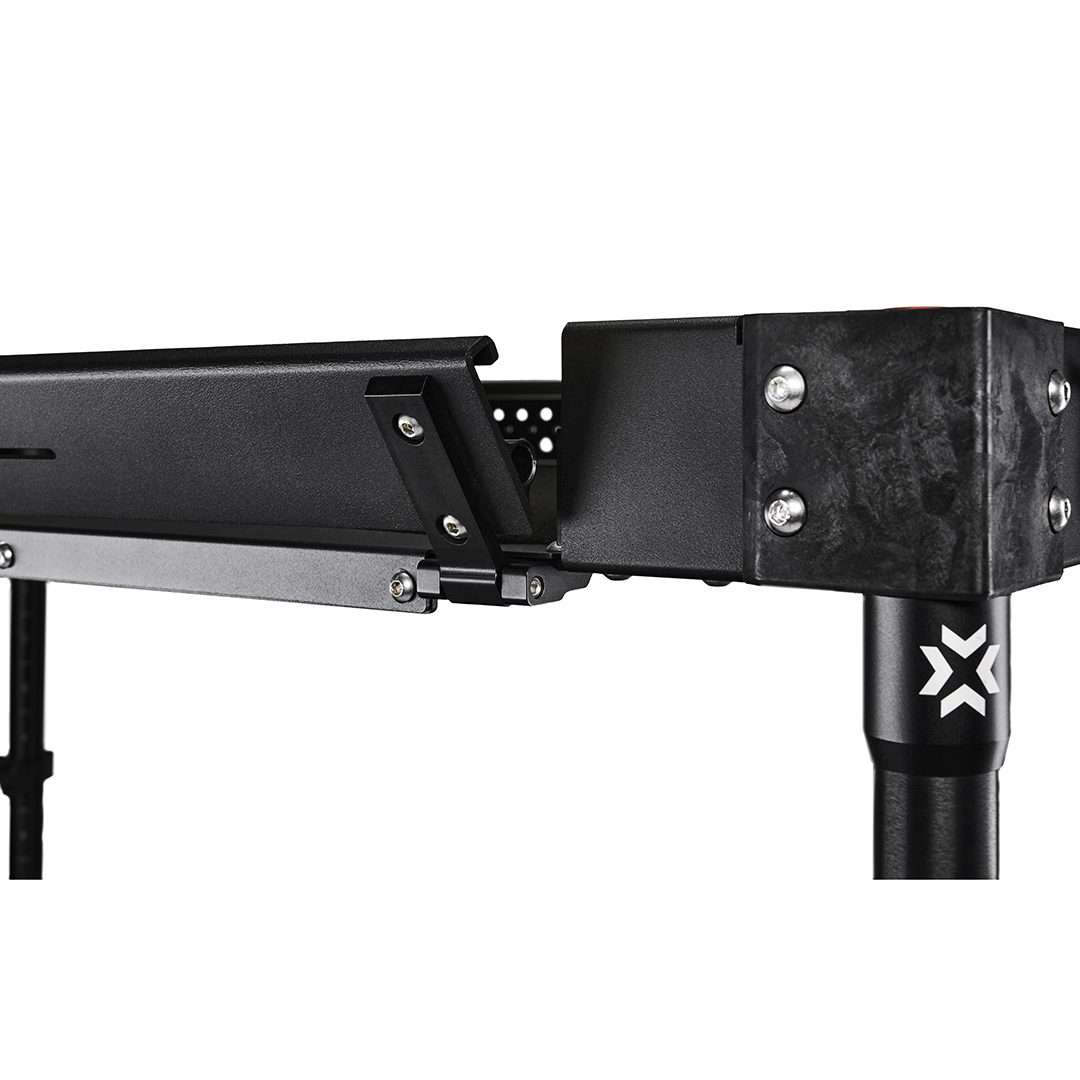

Furthermore, the Apollo’s 4-Sided Top Shelf has a hinged front-panel that quickly transforms your top shelf into a flat working surface. Having a flat working surface, clear of an edge, greatly improves stationary workflows. Simply lift up on the front panel and lock into place with our “bolt-action” latches to keep your items safe and secure while on the move.

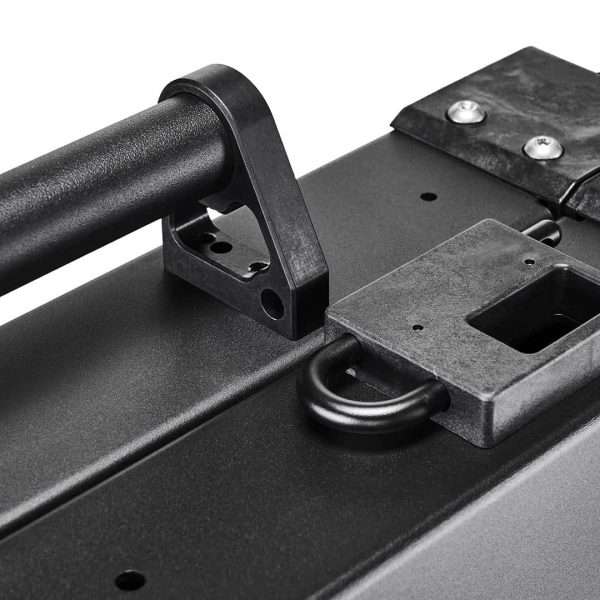

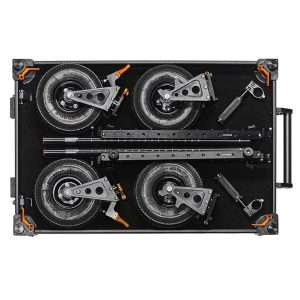

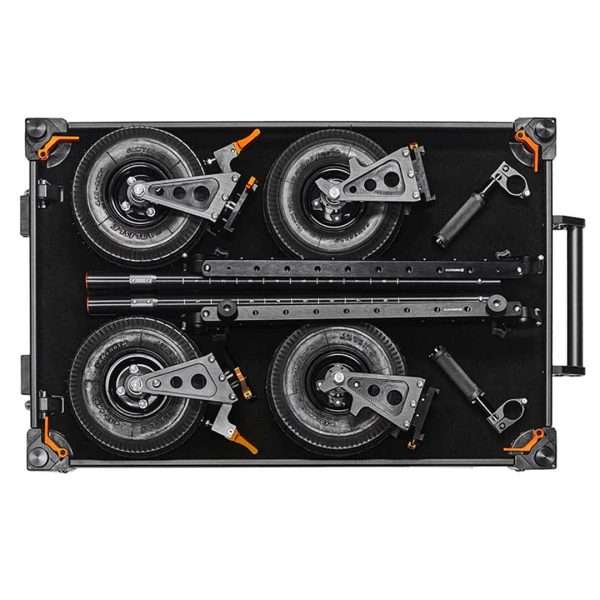

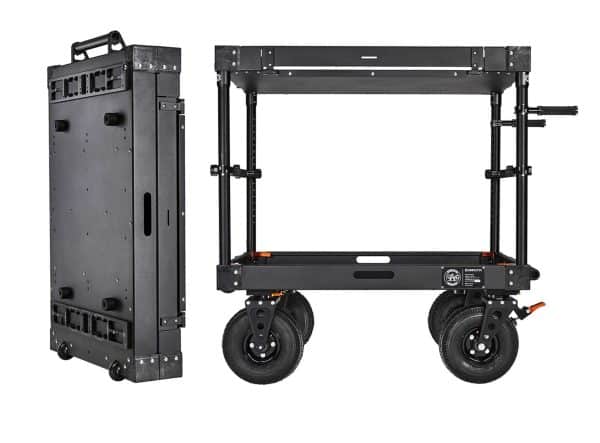

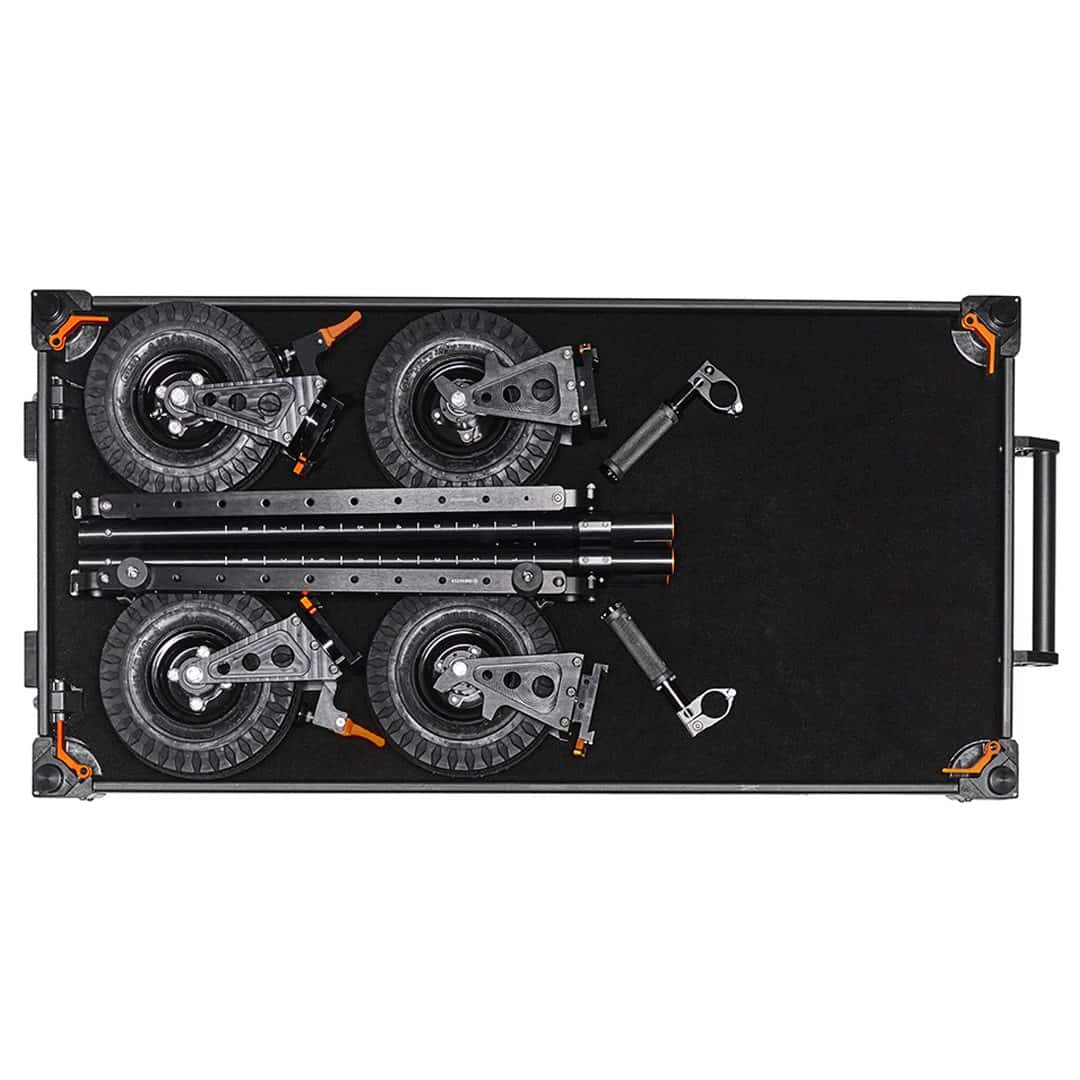

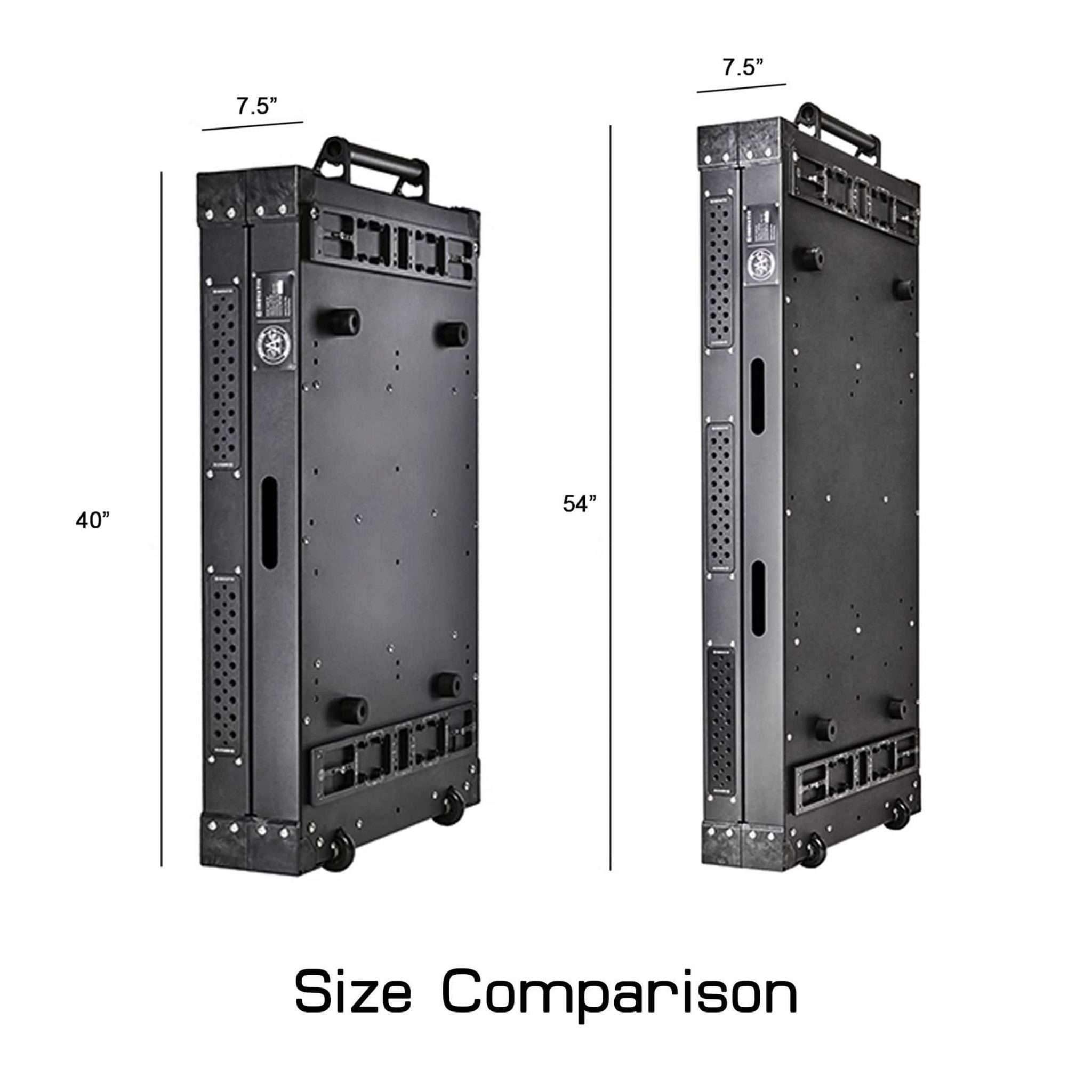

And finally, the Apollo uses our Pack Latch System to easily connect the top and bottom shelf’s together when packed, and our integrated Skate Wheels to easily transport the workstation when in case-mode. All of these features are jammed packed into the Apollo’s design, and when packed, the Apollo is a slim 7.5In. thick.
Tech Specs
Payload Capacity: Apollo 40: 1,200 lb | Apollo 52: 1,200 lb

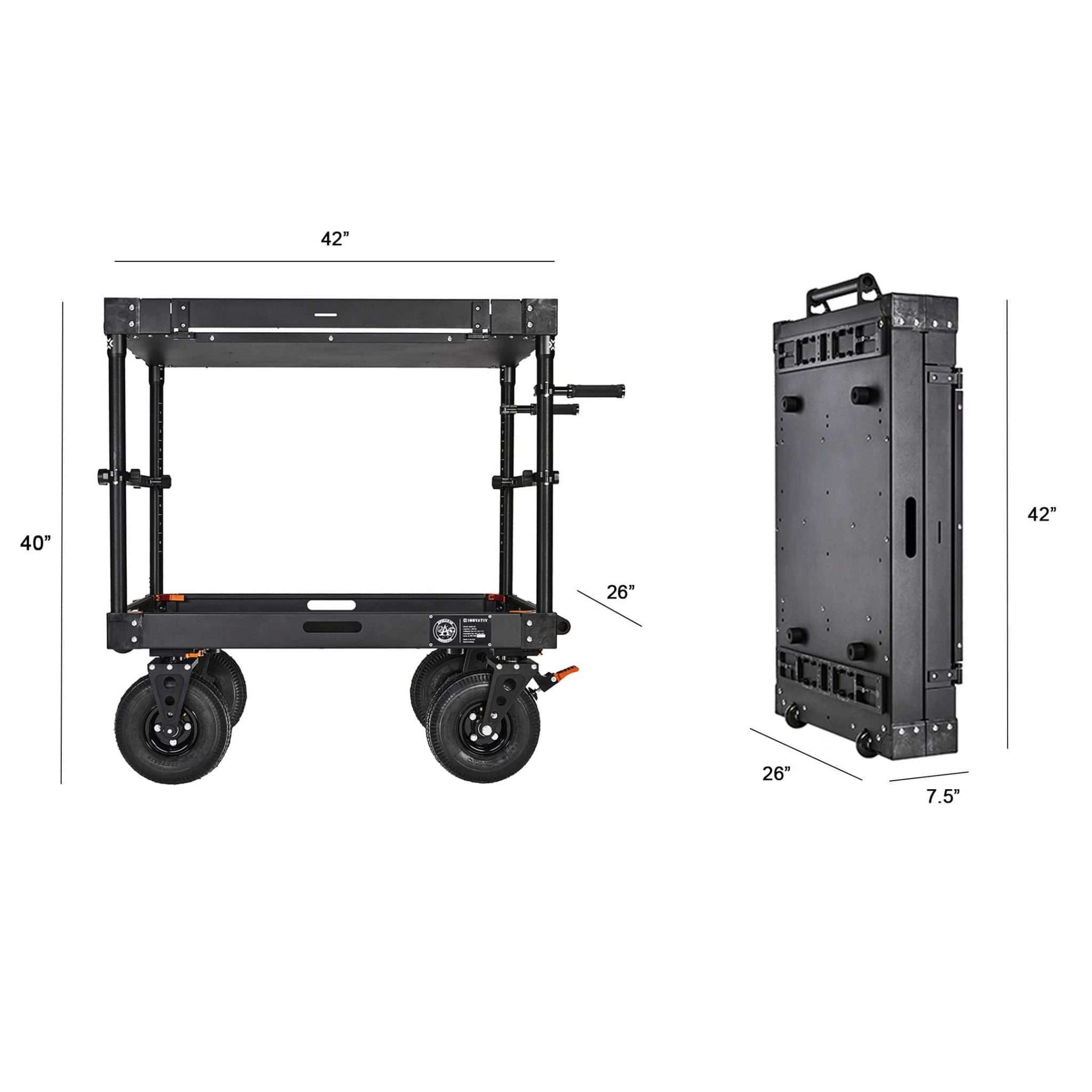

APOLLO 40
- Product Weight: 102 lb
- Product Weight, Wheels Removed: 85.5 lb
- Wheel Weight (Including Wheel Bags): 16.5 lb

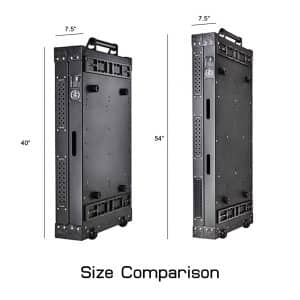

- Packed: 42 In. L x 26 In. W x 7.5 In. H
- Built: 42 In. L x 26 In. W x 40 In. H
- (Fixed Height, Not Adjustable)
- Available Space Between Shelves (Built): 34 In. L x 22 In. W x 26.75 In. H

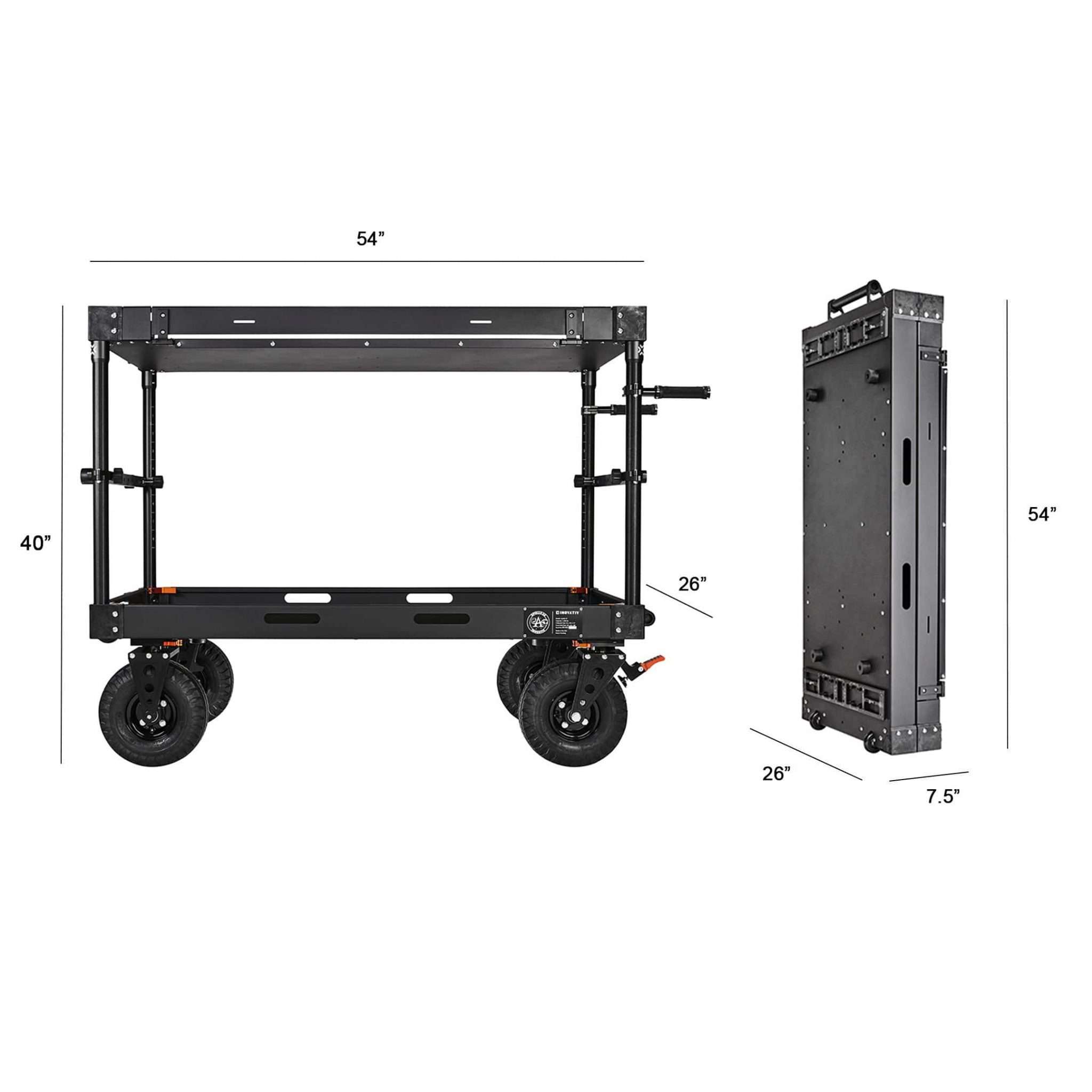

APOLLO 52
- Product Weight: 115 lb
- Product Weight, Wheels Removed: 98.5 lb
- Wheel Weight (Including Wheel Bags): 16.5 lb
- Packed: 54 In. L x 26 In. W x 7.5 In. H
- Built: 54 In. L x 26 In. W x 40 In. H
- (Fixed Height, Not Adjustable)
- Available Space Between Shelves (Built): 46 In. L x 22 In. W x 26.75 In. H
Length dimensions include Easy Roll Handle

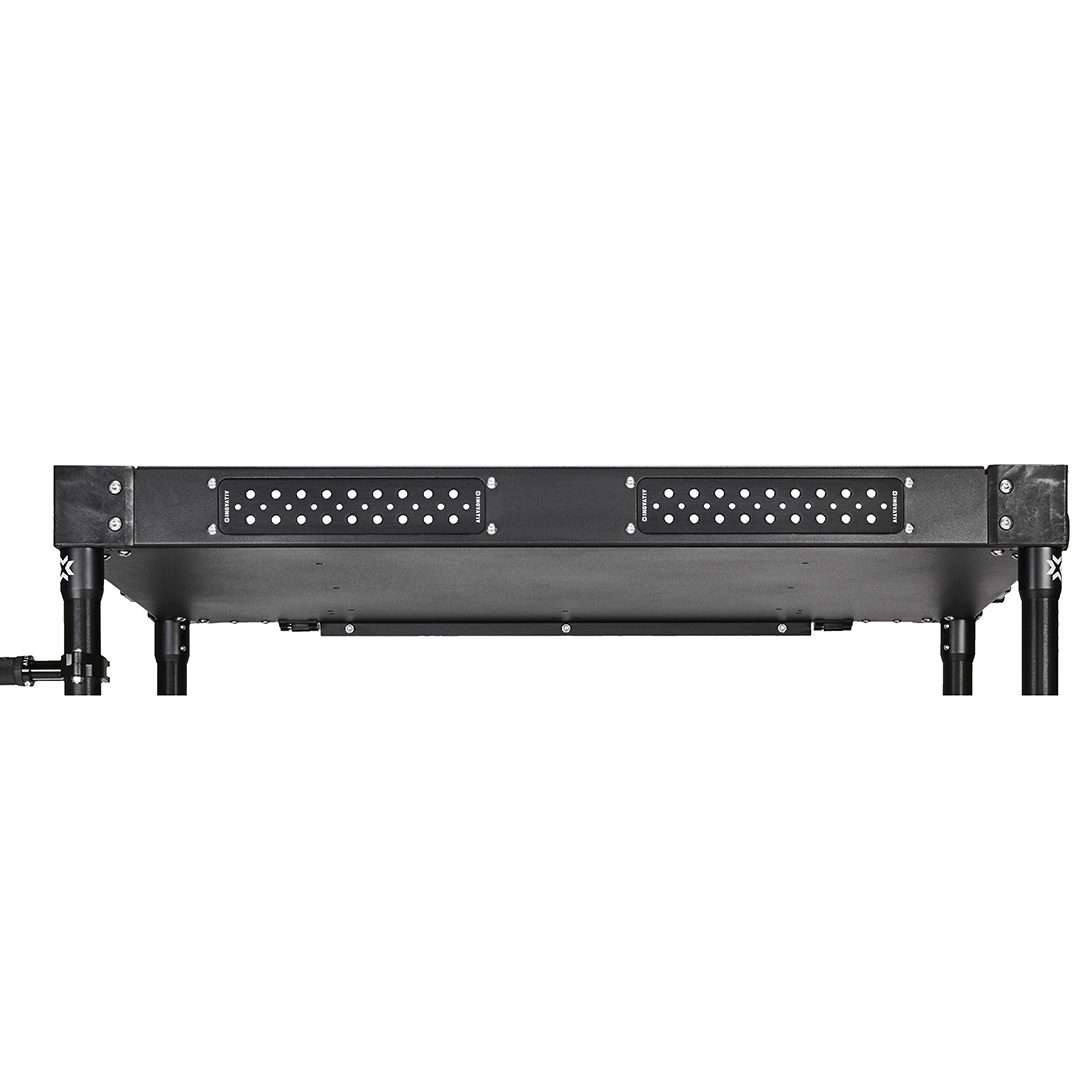

THREADED RAIL PLATE SPECIFICATIONS (EA):
- 10.500 In. L x 2.125 In. H x 0.250 In. W
- (10) 1/4-20 Threaded Holes
- (18) 3/8-16 Threaded Holes
Features
- Payload capacity of 1,200 lb
- Hinged X-Top Shelf with Integrated Threaded Rail Plates
- Bottom shelf internal main-frame system greatly improves workstation stability and payload capacity
- Top shelf incorporates Corner Mold Lock-System that serves as a location to mount Apollo specific accessories directly into the carts upright posts
- 10In. removable, aluminum EVO Wheel System (Foot Brakes Included)
- 100% Sealed Bearings for smooth and quiet ride
- “Hemmed” top and bottom shelf construction to increase strength and durability
- Top and bottom shelves are pre-drilled for mounting of drawers
- Integrated Pack Latch System

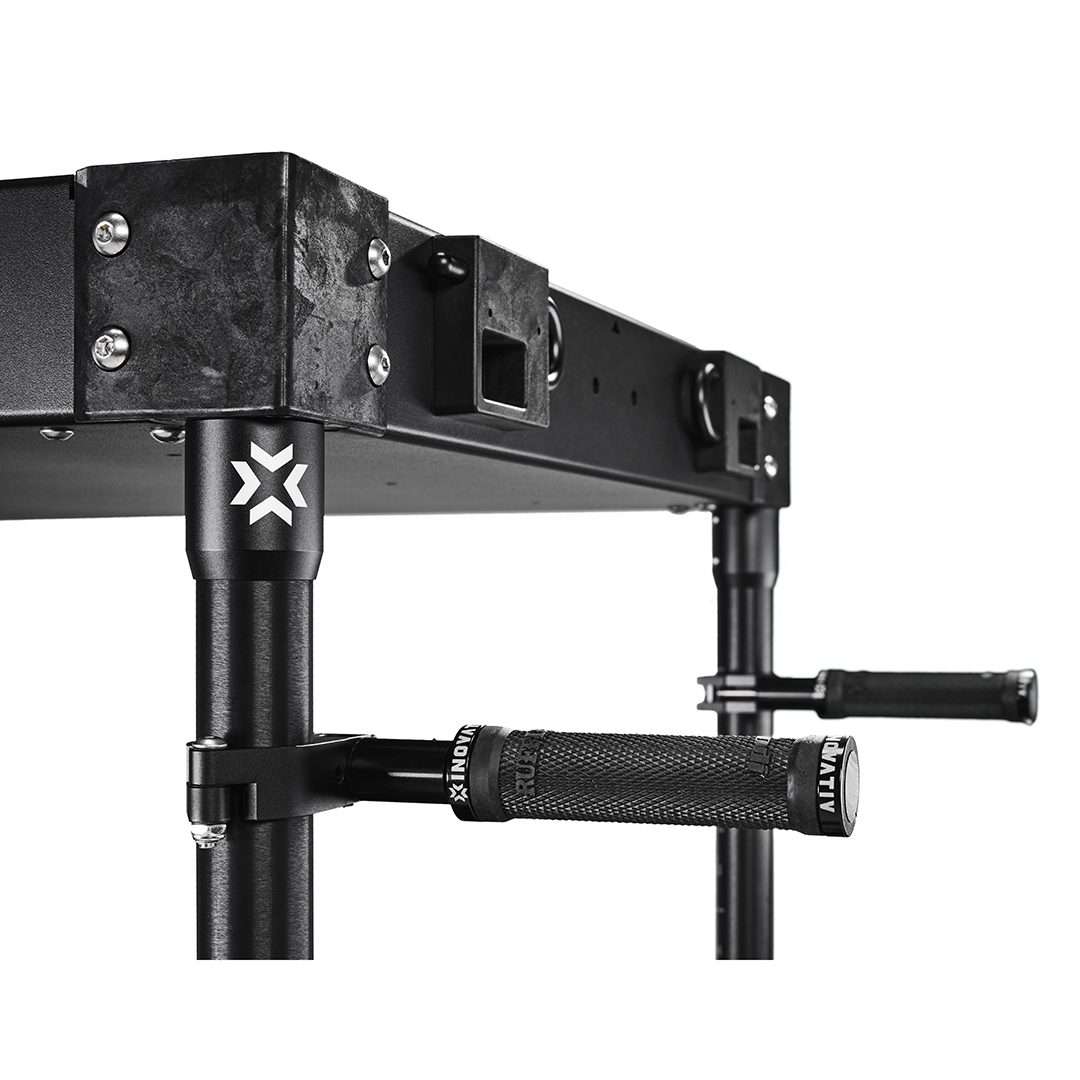

- (1) pair, Overtube Quick Grips

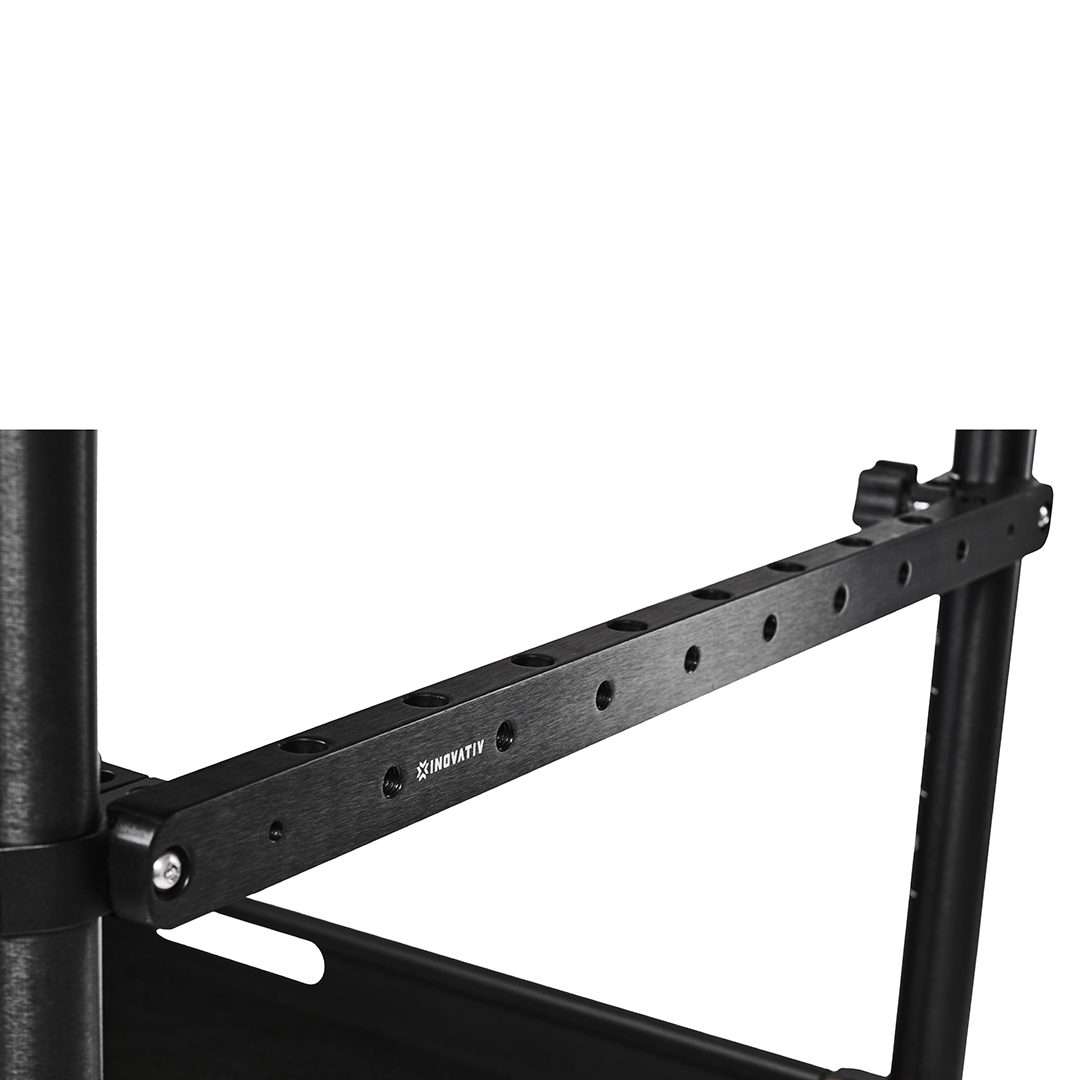

- (2) Overtube Accessory Crossbars
- Integrated Skate Wheels allow for easy transport while in case-mode
- Constructed of 5052 and 6061 T6 aluminum, stainless steel hardware throughout, corrosion resistant
- Designed, manufactured, and assembled in California, USA
- INOVATIV’s 5-year Manufacturers Warranty. Limitations Apply.
