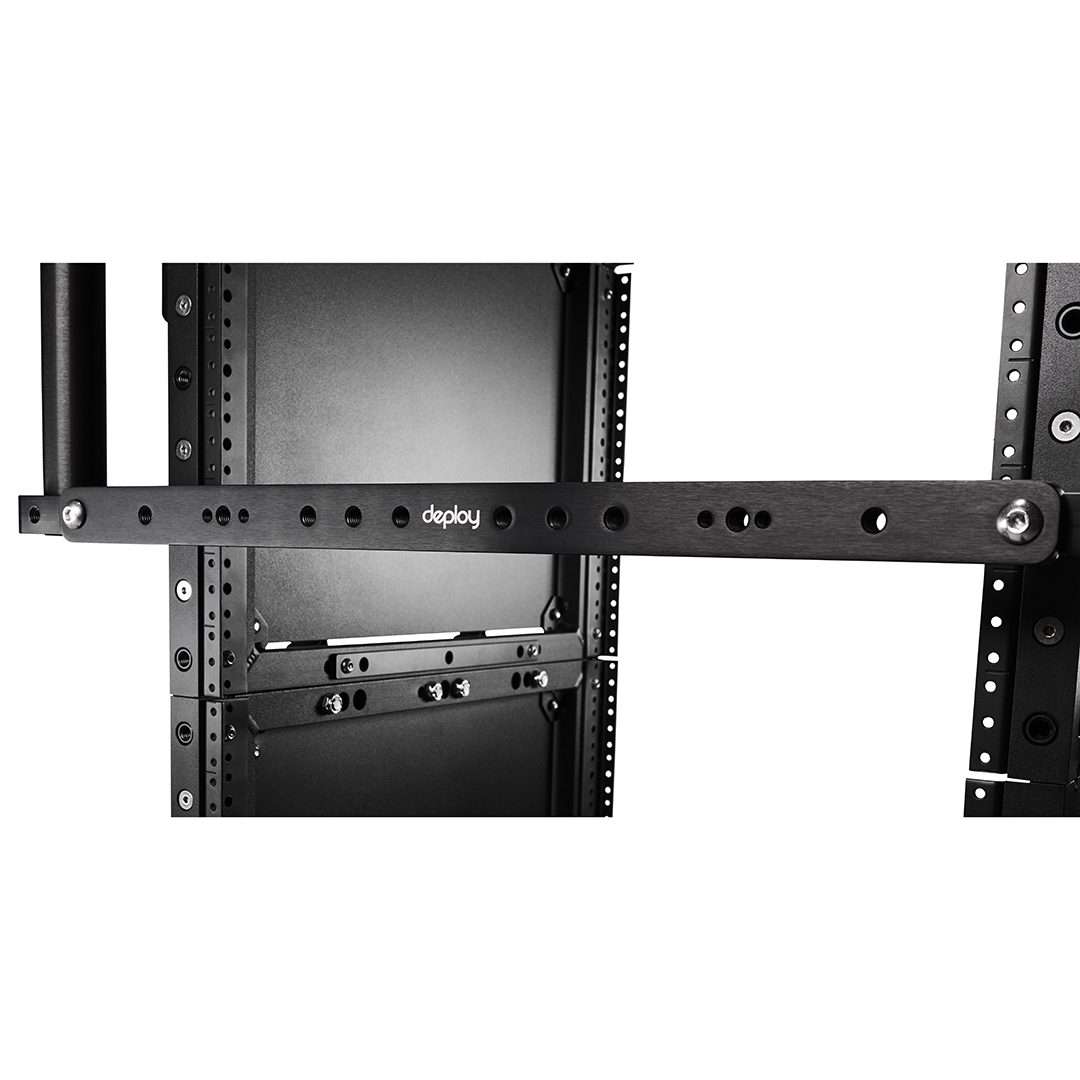

INOVATIV’s design for the most technical of our users, the Deploy features a smaller footprint, lighter weight and more maneuverability than other vertical workstations. It integrates with INOVATIV’s long line of accessories to meet your workflow needs. An included accessory mount on the rear of the workstation allows for use of monitor mounting and other accessories that will further expand your workflow capabilities without expanding your footprint.

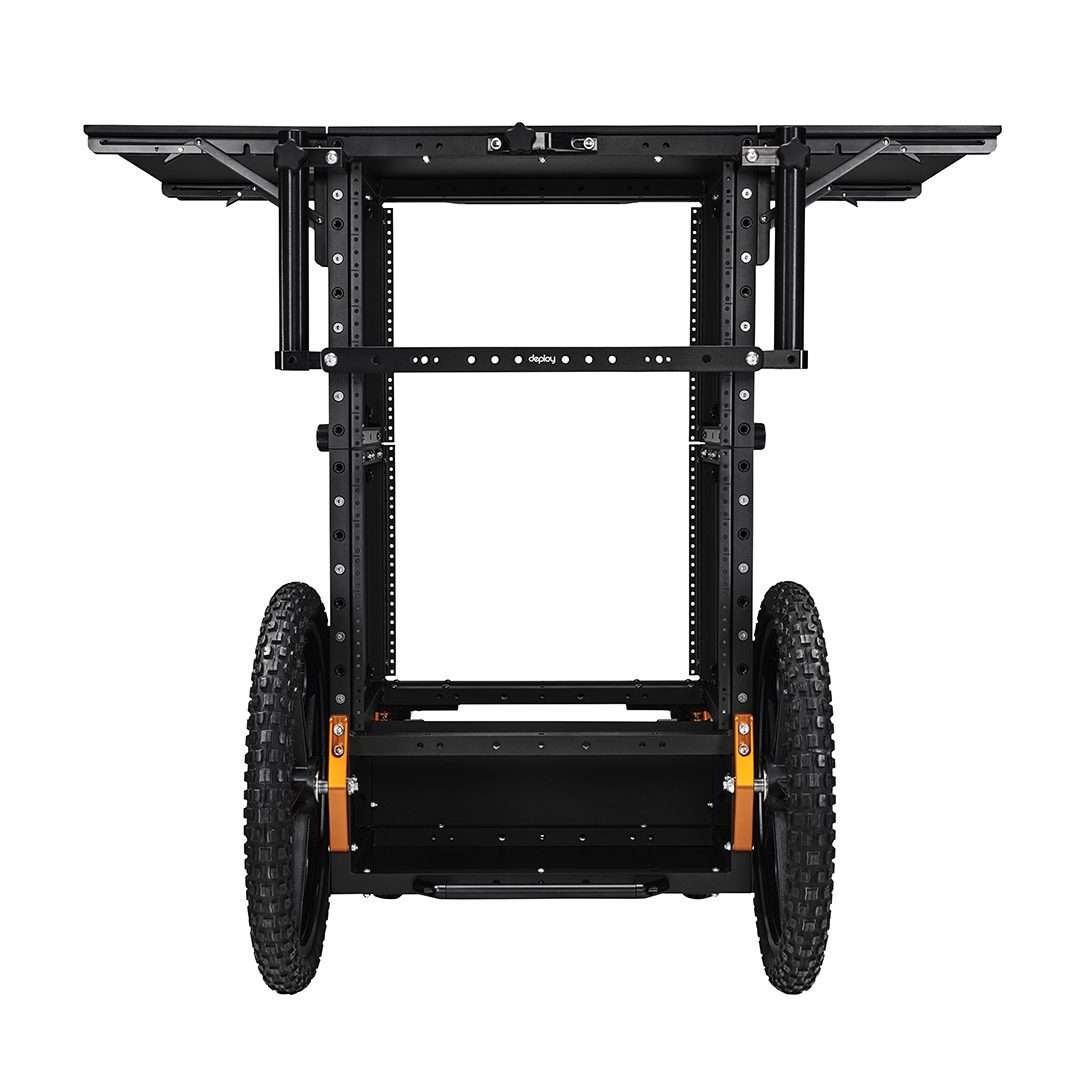

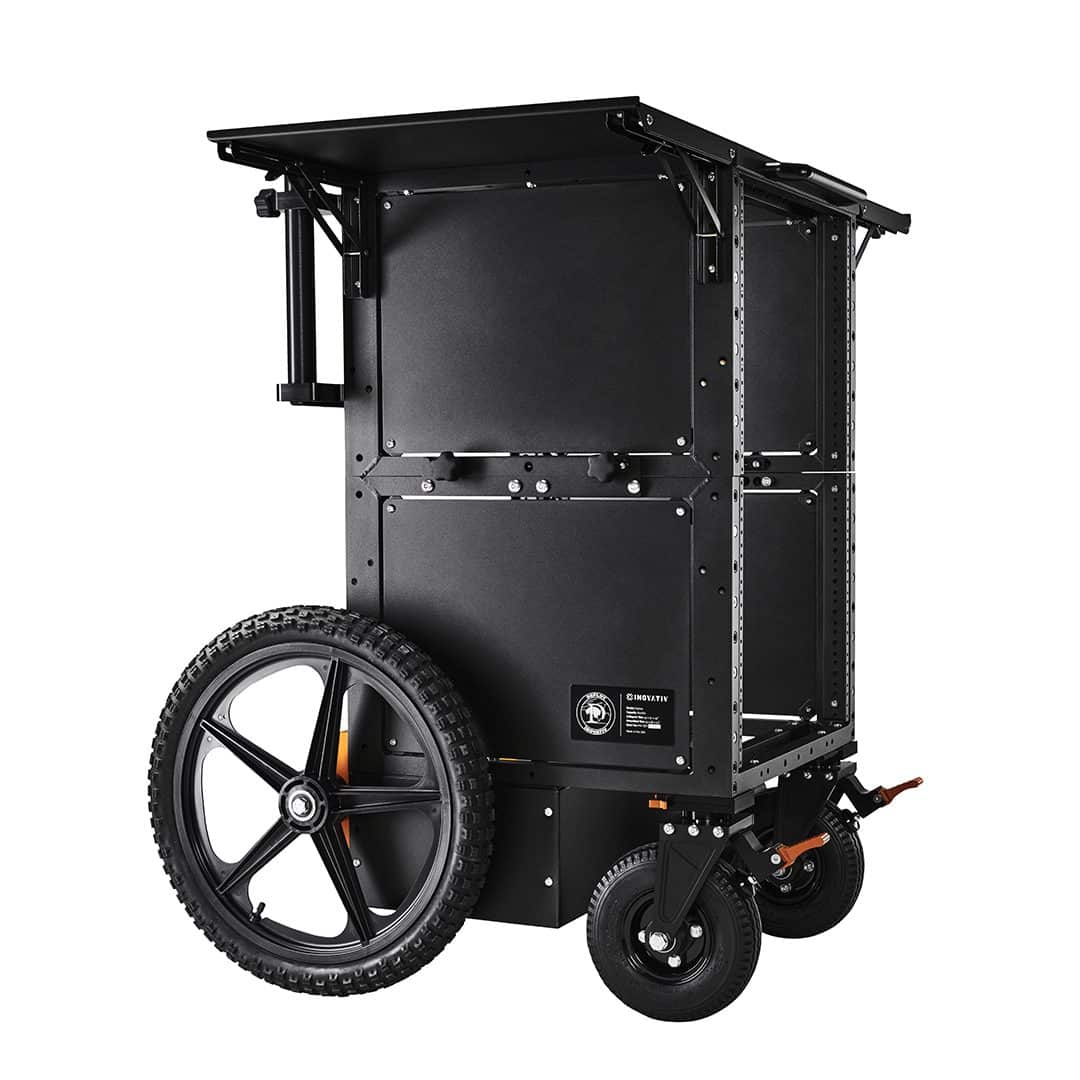

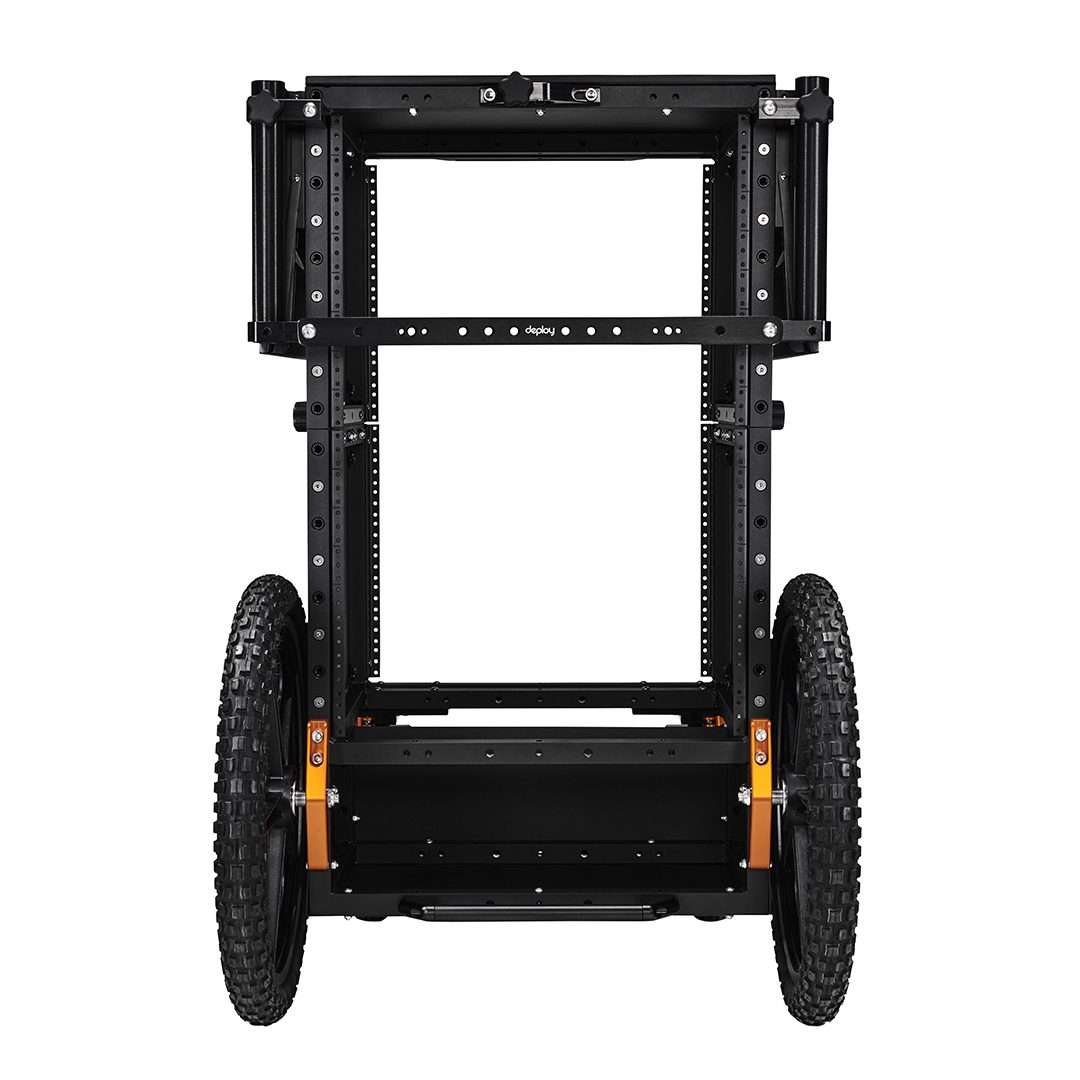

The Deploy’s foldable side wings allows for easier access through narrow halls, entryways, and elevators. When fully extended, the side wings provide an additional 24 In. of workspace. The Deploy has four removable aluminum side panels that reduce dust penetration to the inside of the workstation and provide easy access to rack mounted components in case any adjustments need to be made.

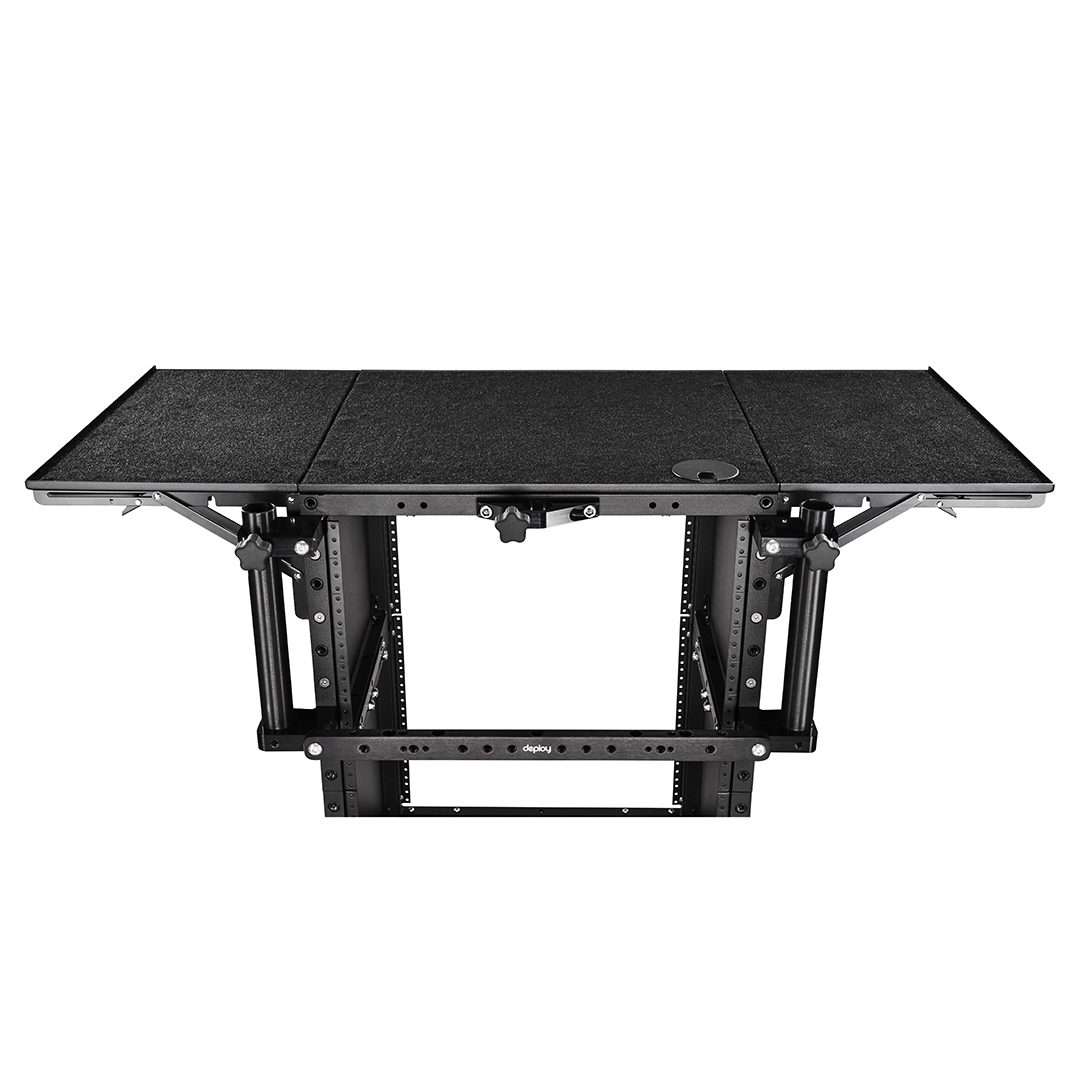

The aluminum top surface of the Deploy is equipped with a 2.5 In. cable pass through hole for superior cable management, and finished with INOVATIV’s signature black outdoor marine carpet.
Tech Specs
PAYLOAD CAPACITY: 600 LB
DIMENSIONS:
- 45 In. L x 21.25 In. W x 40 In. H
- Top Working Surface, Side Wings Folded: 21.25 In. L x 21.125 In. W
- Top Working Surface, Side Wings Extended: 45.125 In. L x 21.125 In. W
- Product Weight: 91 lb
RACK AND FRAME SPECIFICATIONS:
- 10/32 Tapped Steel Rack-Rail

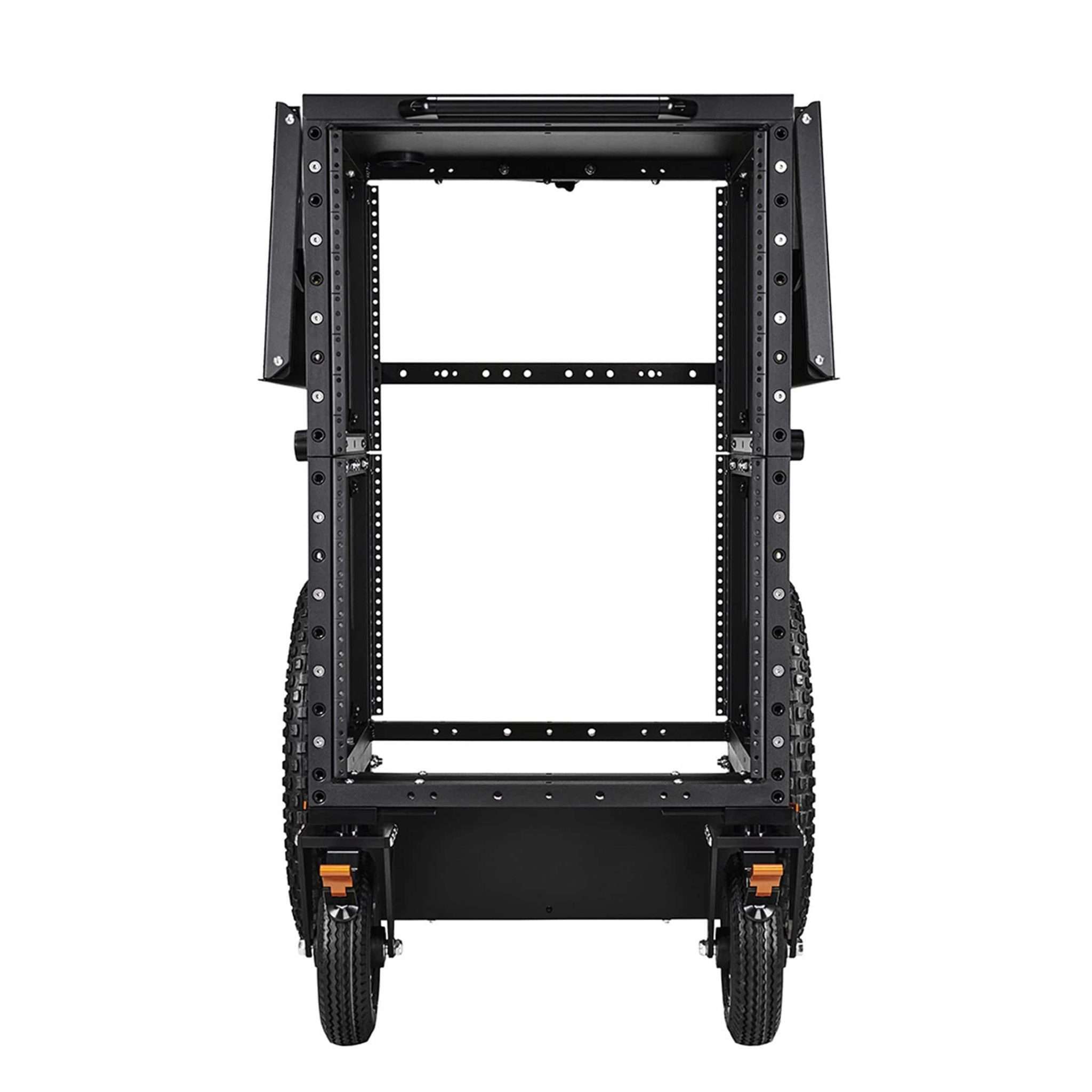

- 16U of rack space available both front and back of workstation
- (22) integrated 3/8-16 threaded mounting holes (front of frame)
- (16) integrated 3/8-16 threaded mounting holes (back of frame)
Features
- Payload capacity of 600 lb
- 16u x 21.125 In. Internal Rack Mounting Space (10/32 thread)
- Rear accessory mount allows for easy connection of INSIGHT Monitor Mount System or Two-Stage Risers

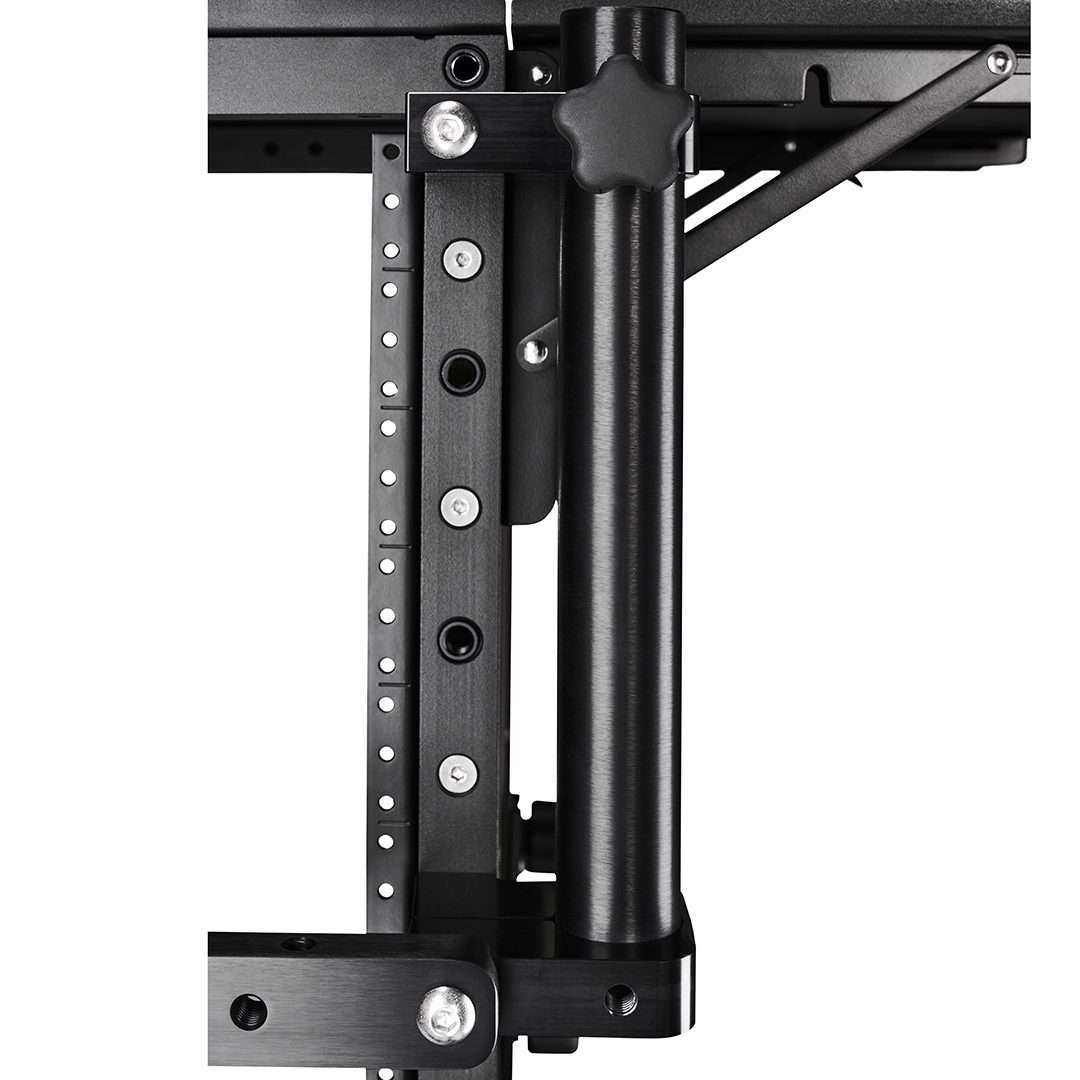

- Center Mast Bracket provides centered mounting of our Two-Stage Riser
- Foldable side wings double your working surface

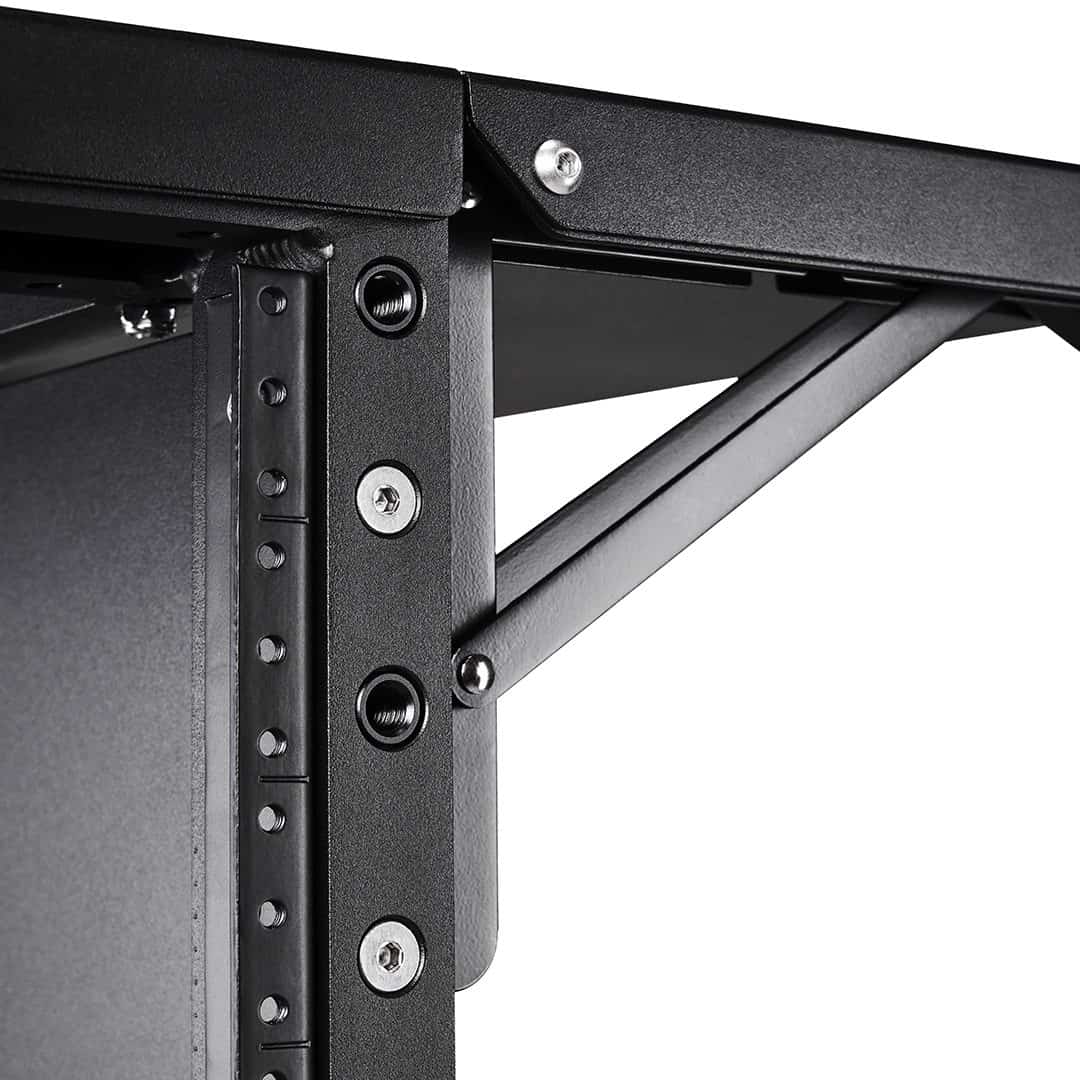

- Frame has integrated 3/8-16 threaded mounting holes to connect accessories

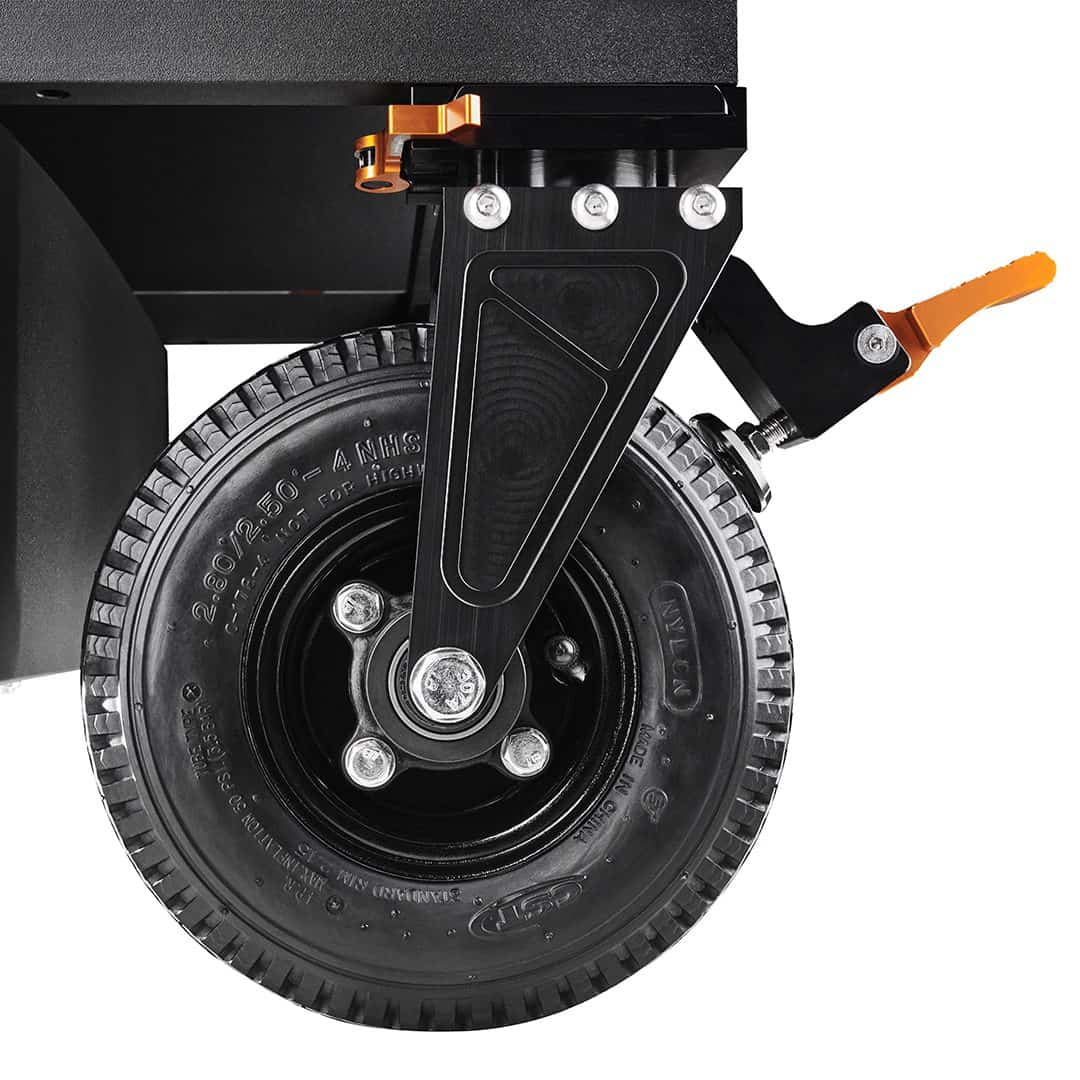

- INOVATIV’s EVO Wheel System (2 Swivel with Foot Brakes)

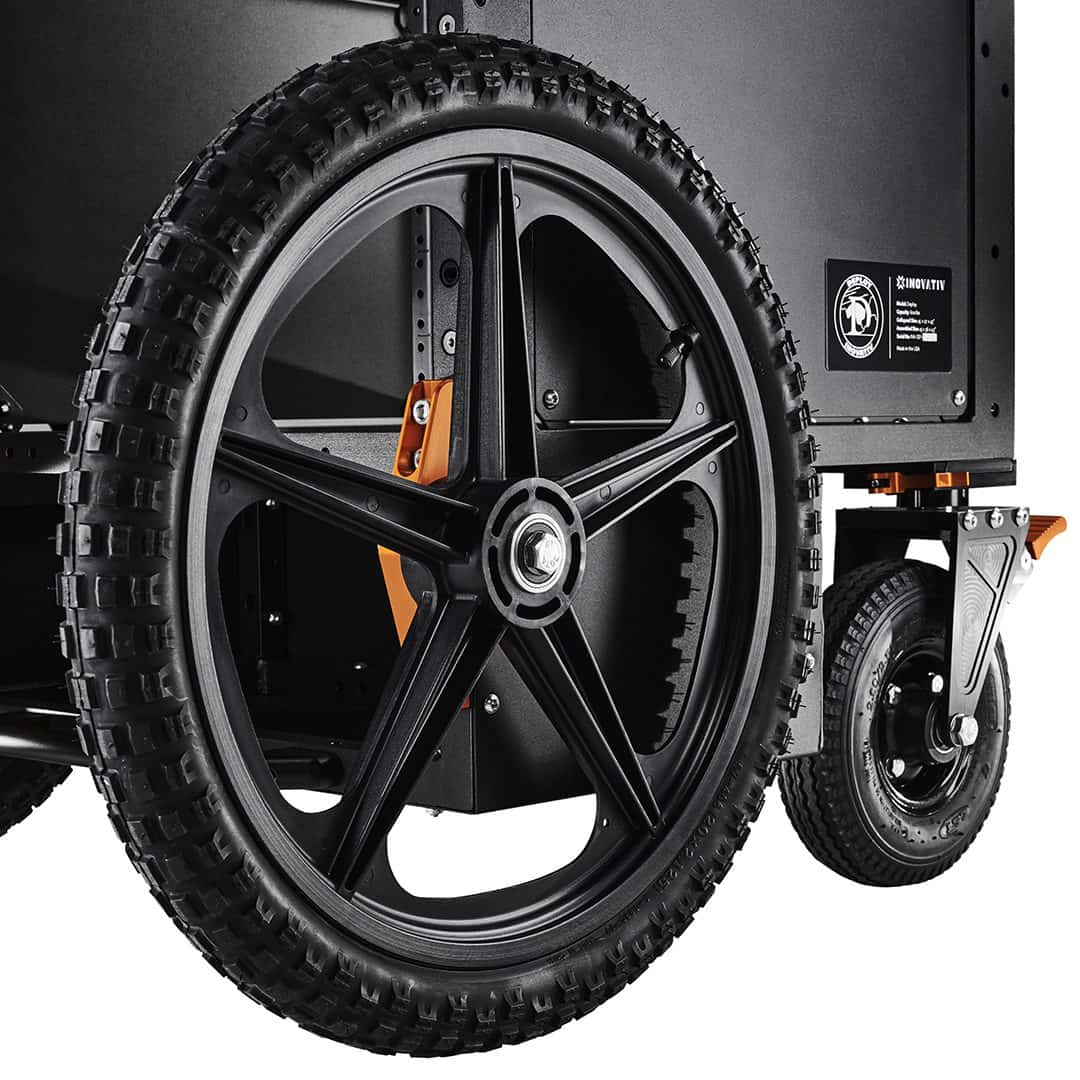

- 20In. rear wheels improve mobility over curbs, cables, stairs, etc.
- Easily separate top and bottom half for faster loading/unloading into and out of vehicles
- Optional lower rear, combo-locking drawer
- INOVATIV’s 5-year Manufacturers Warranty. Limitations Apply.
- Designed, manufactured, and assembled in California, USA
